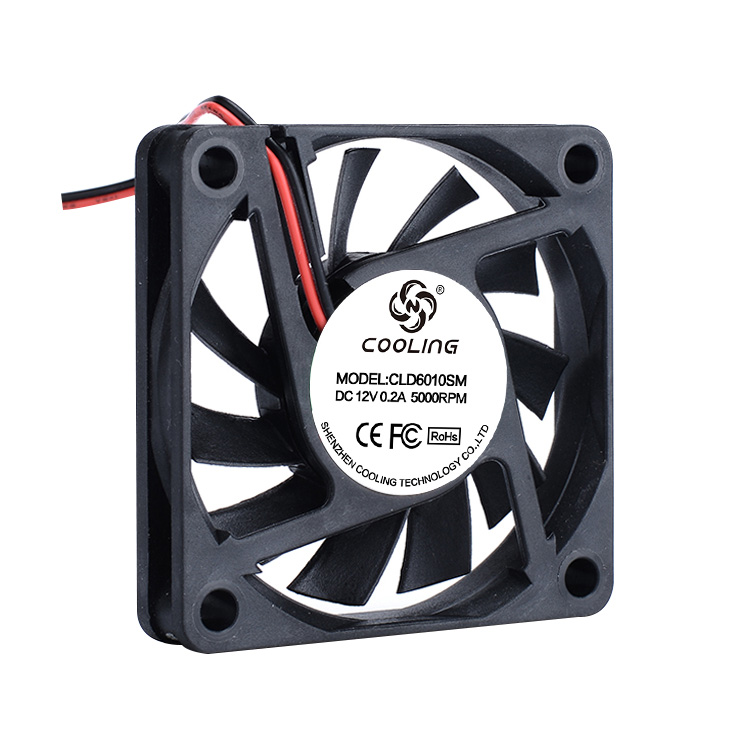

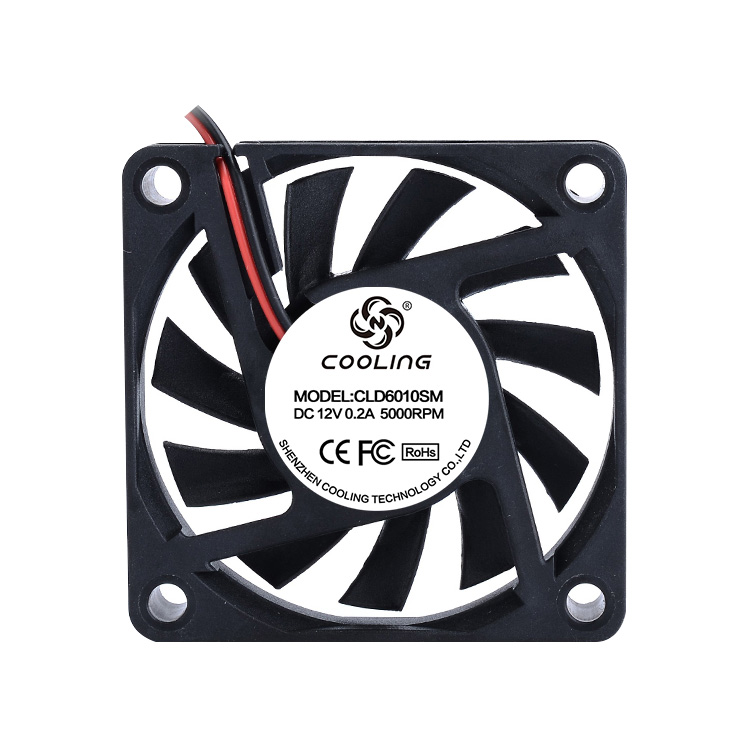

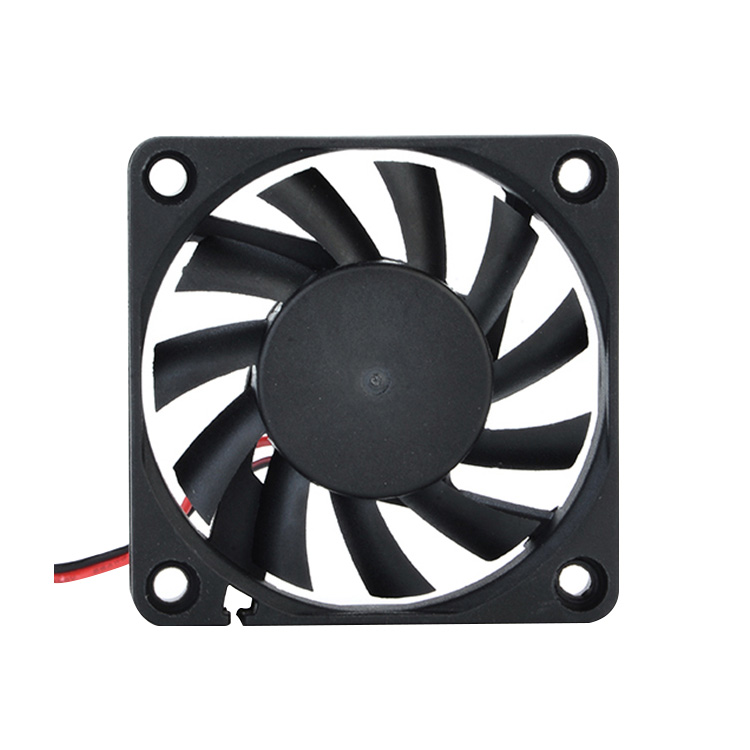

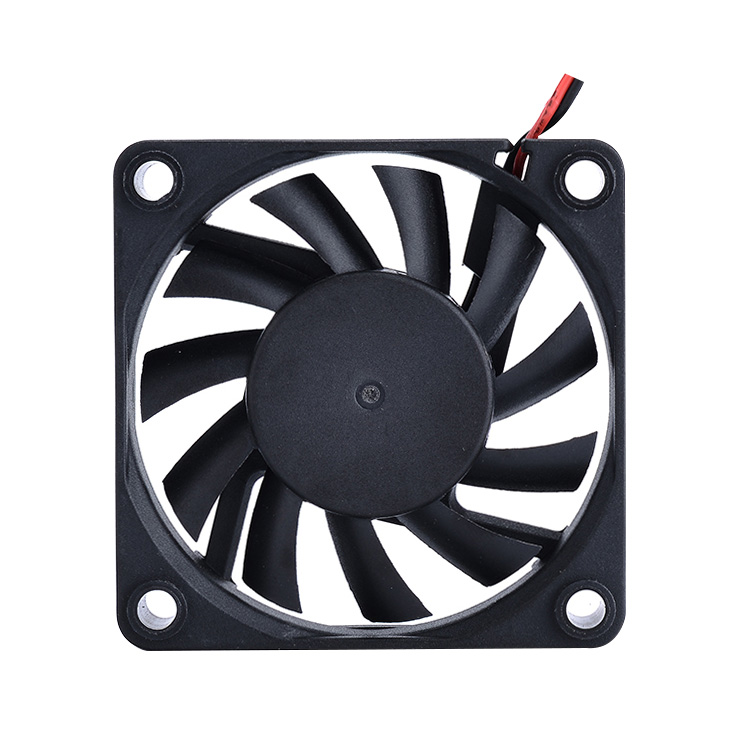

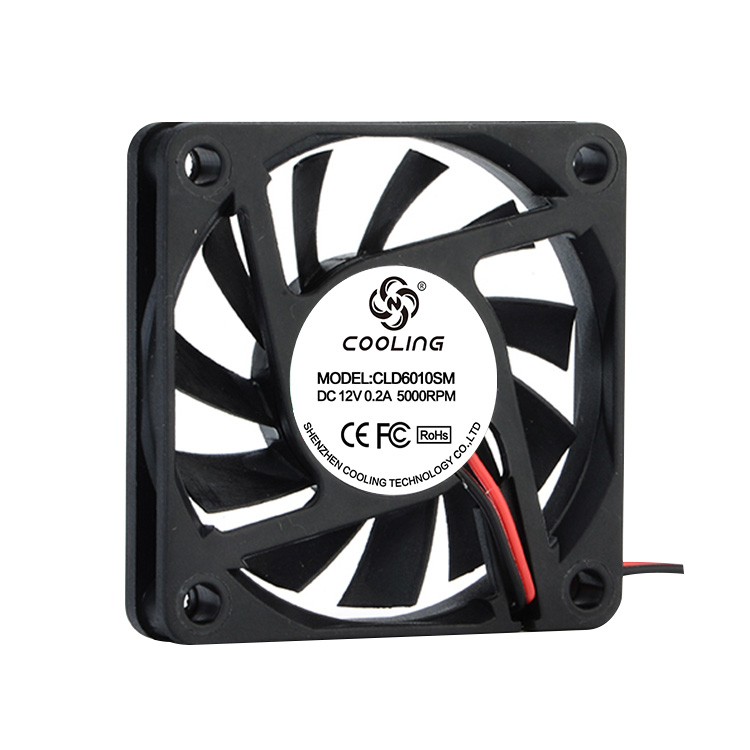

60x60x10mm 5V 12VDC Cooling Fan
Product Attributes
l Size / Dimension: 60x60x10mm
l Voltage - Rated：5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.325 ~ 0.550 m³/min（11.4 ~ 19.4 CFM）
l Static Pressure: 1.30 ~ 3.34 mm H2O（0.051 ~ 0.131 in H2O）
l Noise: ＜25.3 / 39.0 dB(A)
l RPM: 3000 ~ 5000 RPM
l Current Rating (Amps): 0.03 ~ 0.168A
l Voltage Range: 1.8 ~ 3 ~ 6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.36 ~ 0.84 W
l Weight: 21g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD6010L05X
5
1.8~3~6
0.072
0.36
3000
0.325
11.4
1.30
0.051
25.3
CLD6010M05X
5
1.8~3~6
0.096
0.48
3500
0.381
13.4
1.67
0.066
29.3
CLD6010H05X
5
1.8~3~6
0.12
0.60
4000
0.461
16.2
2.29
0.090
32.8
CLD6010HH05X
5
1.8~3~6
0.144
0.72
4500
0.501
17.7
2.72
0.107
35.9
CLD6010VH05X
5
1.8~3~6
0.168
0.84
5000
0.550
19.4
3.34
0.131
39.0
CLD6010L12X
12
8.5~13.5
0.03
0.36
3000
0.325
11.4
1.30
0.051
25.3
CLD6010M12X
12
8.5~13.5
0.04
0.48
3500
0.381
13.4
1.67
0.066
29.3
CLD6010H12X
12
8.5~13.5
0.05
0.60
4000
0.461
16.2
2.29
0.090
32.8
CLD6010HH12X
12
8.5~13.5
0.06
0.72
4500
0.501
17.7
2.72
0.107
35.9
CLD6010VH12X
12
8.5~13.5
0.07
0.84
5000
0.550
19.4
3.34
0.131
39.0
