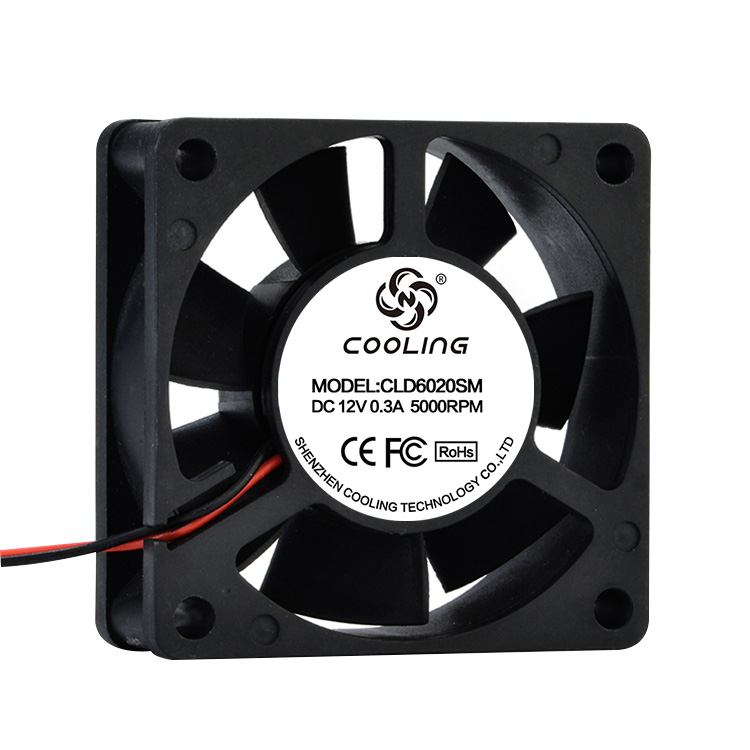

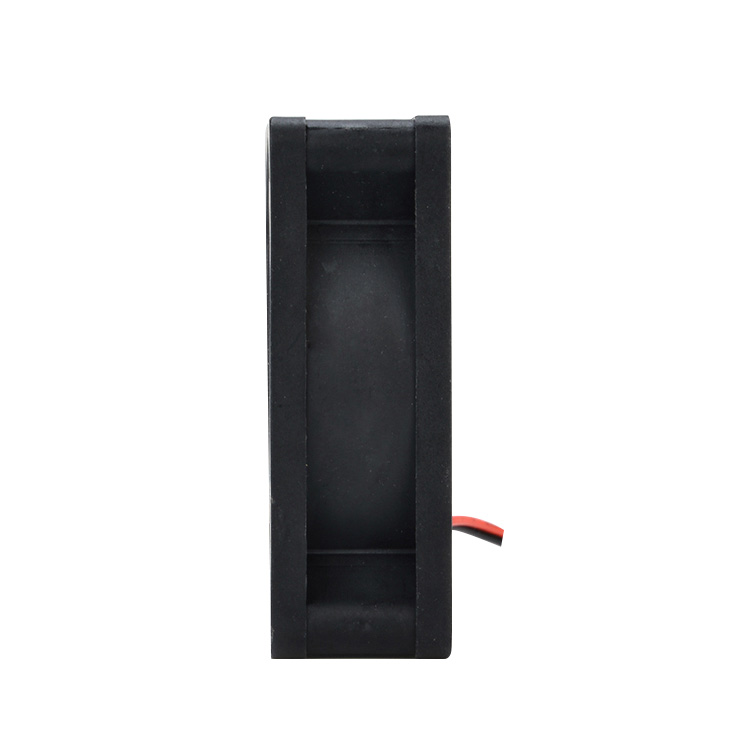

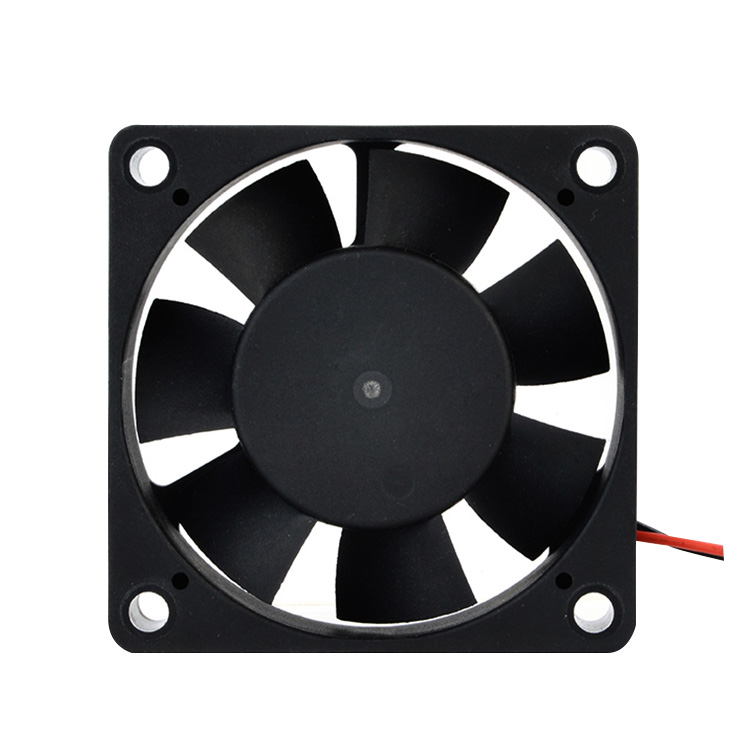

60x60x20mm 12V 24VDC Cooling Fan
Product Attributes
l Size / Dimension: 60x60x20mm
l Voltage - Rated：12VDC / 24VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.392 ~ 0.557 m³/min（13.8 ~ 19.6 CFM）
l Static Pressure: 2.87 ~ 5.94 mm H2O（0.113 ~ 0.234 in H2O）
l Noise: ＜27.2 / 36.5 dB(A)
l RPM: 3500 ~ 5000 RPM
l Current Rating (Amps): 0.03 ~ 0.12A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：0.72 ~ 1.44 W
l Weight: 47g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD6020L12X
12
7~13.5
0.06
0.72
3500
0.392
13.8
2.87
0.113
27.2
CLD6020LM12X
12
7~13.5
0.08
0.96
4000
0.437
15.4
3.9
0.154
30.1
CLD6020M12X
12
7~13.5
0.1
1.2
4500
0.499
17.6
4.86
0.191
33.5
CLD6020H12X
12
7~13.5
0.12
1.44
5000
0.557
19.6
5.94
0.234
36.5
CLD6020L24X
24
18~26.5
0.03
0.72
3500
0.392
13.8
2.87
0.113
27.2
CLD6020LM24X
24
18~26.5
0.04
0.96
4000
0.437
15.4
3.9
0.154
30.1
CLD6020M24X
24
18~26.5
0.05
1.2
4500
0.499
17.6
4.86
0.191
33.5
CLD6020H24X
24
18~26.5
0.06
1.44
5000
0.557
19.6
5.94
0.234
36.5
