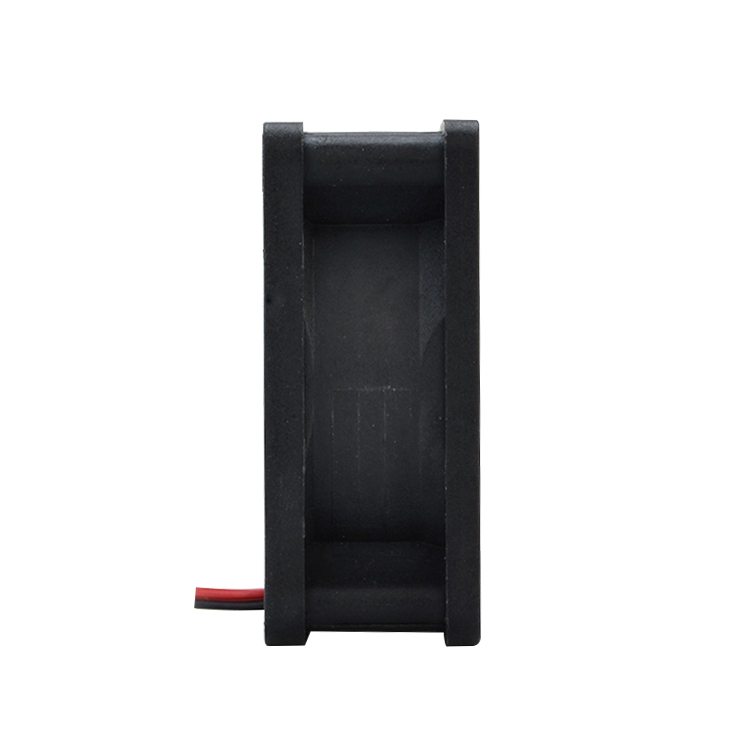

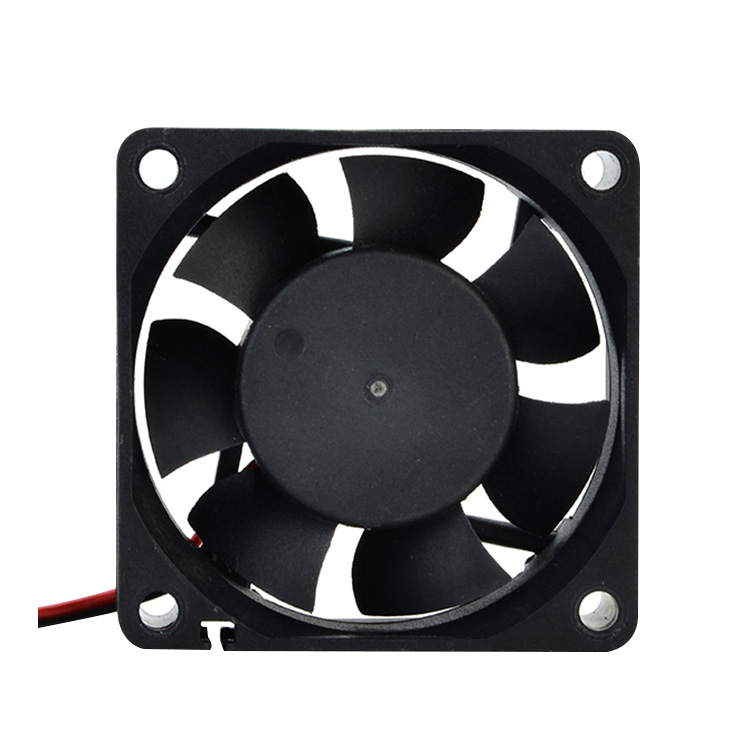

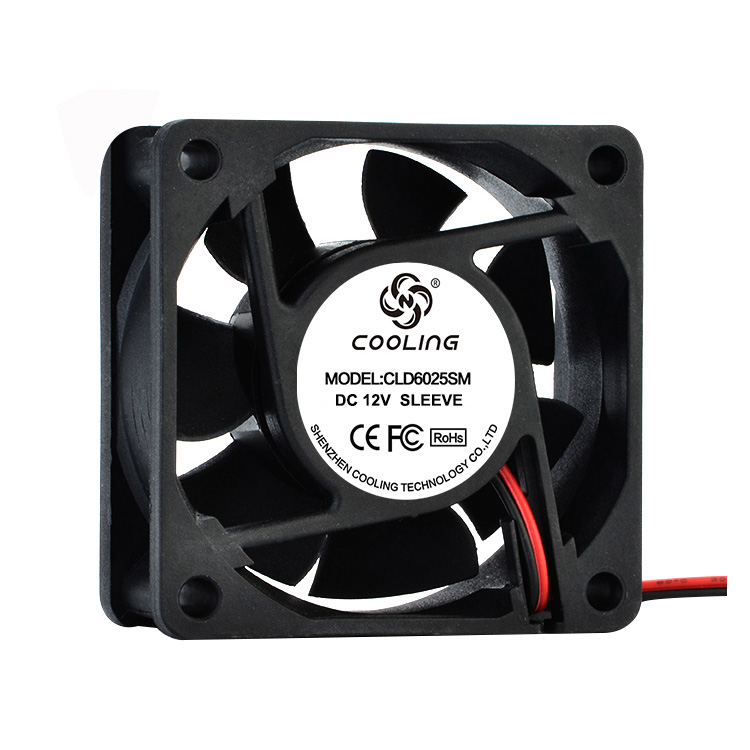

60x60x25mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 60x60x25mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing
l Air Flow: 0.446 ~ 0.764 m³/min（15.7 ~ 26.9 CFM）
l Static Pressure: 2.13 ~ 5.56 mm H2O（0.084 ~ 0.219 in H2O）
l Noise: ＜27.2 - 40.2 dB(A)
l RPM: 3000 ~ 5000 RPM
l Current Rating (Amps): 0.025 ~ 0.23A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：1.2 ~ 2.76 W
l Weight: 60g
Certifications:
CE Listed
FCC Listed
REACH Compliant
Model
Rated Voltage
Operating Voltage Range
Rated Current
Rated
Input Power
Speed
Maximum Air Flow
Maximum Air Pressure
Noise
PART.NO.
VDC
VDC
Amp
Watt
R.P.M
M³/min
CFM
mmH2O
InH2O
dB-A
CLD6025L12X
12
7~13.5
0.1
1.2
3000
0.446
15.7
2.13
0.084
27.2
CLD6025LM12X
12
7~13.5
0.14
1.68
3500
0.535
18.9
2.76
0.109
30.7
CLD6025M12X
12
7~13.5
0.17
2.04
4000
0.611
21.5
3.64
0.143
34.3
CLD6025H12X
12
7~13.5
0.2
2.4
4500
0.690
24.3
4.63
0.182
37.7
CLD6025LH12X
12
7~13.5
0.23
2.76
5000
0.764
26.9
5.56
0.219
40.2
CLD6025L24X
24
18~26.5
0.05
1.2
3000
0.446
15.7
2.13
0.084
27.2
CLD6025LM24X
24
18~26.5
0.07
1.68
3500
0.535
18.9
2.76
0.109
30.7
CLD6025M24X
24
18~26.5
0.085
2.04
4000
0.611
21.5
3.64
0.143
34.3
CLD6025H24X
24
18~26.5
0.1
2.4
4500
0.690
24.3
4.63
0.182
37.7
CLD6025LH24X
24
18~26.5
0.115
2.76
5000
0.764
26.9
5.56
0.219
40.2
CLD6025L48X
48
36~54
0.025
1.2
3000
0.446
15.7
2.13
0.084
27.2
CLD6025LM48X
48
36~54
0.035
1.68
3500
0.535
18.9
2.76
0.109
30.7
CLD6025M48X
48
36~54
0.04
2.04
4000
0.611
21.5
3.64
0.143
34.3
CLD6025H48X
48
36~54
0.05
2.4
4500
0.690
24.3
4.63
0.182
37.7
CLD6025LH48X
48
36~54
0.06
2.76
5000
0.764
26.9
5.56
0.219
40.2
