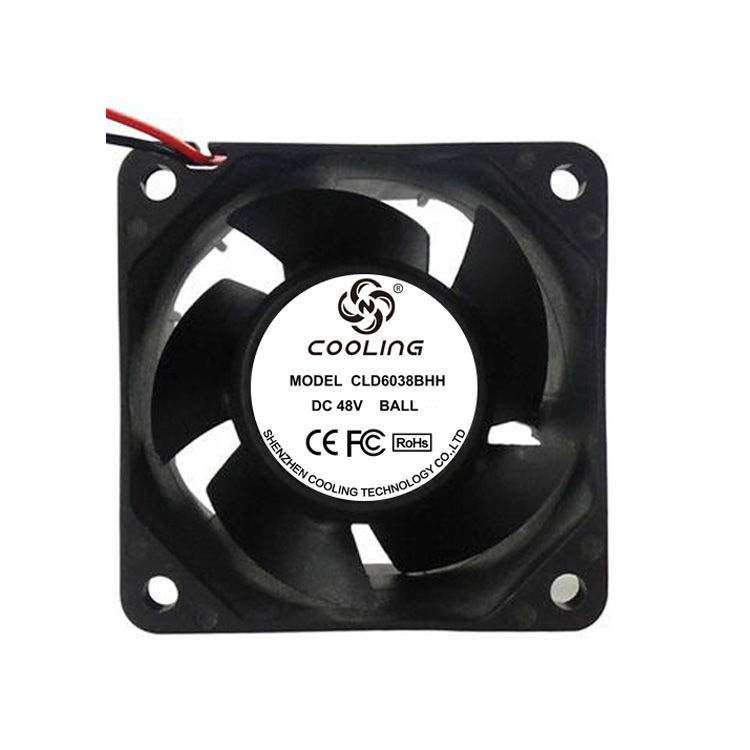

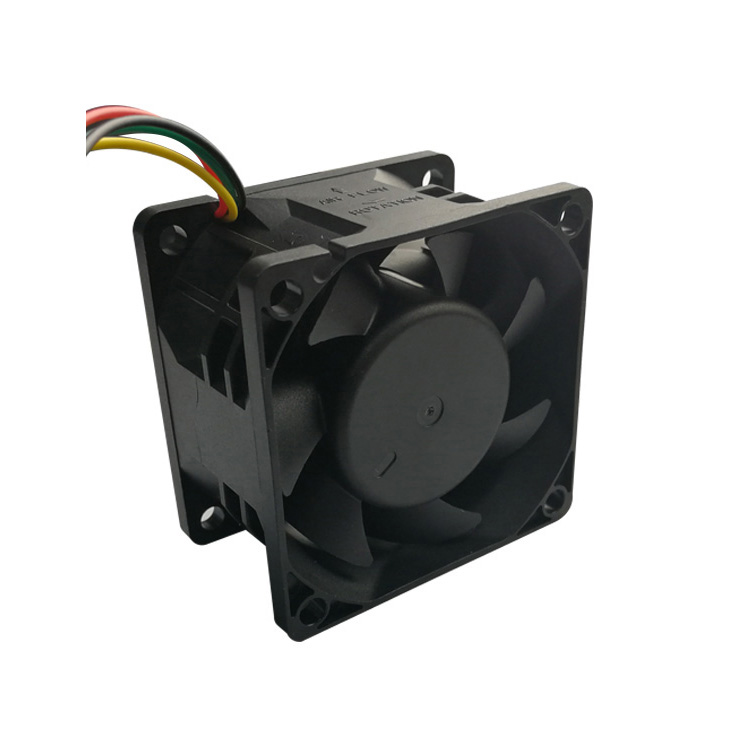

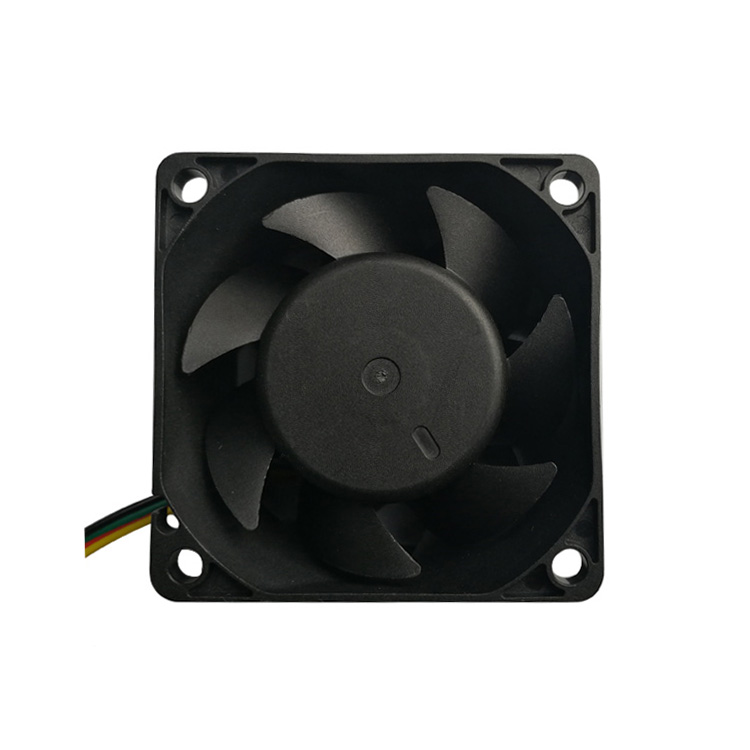

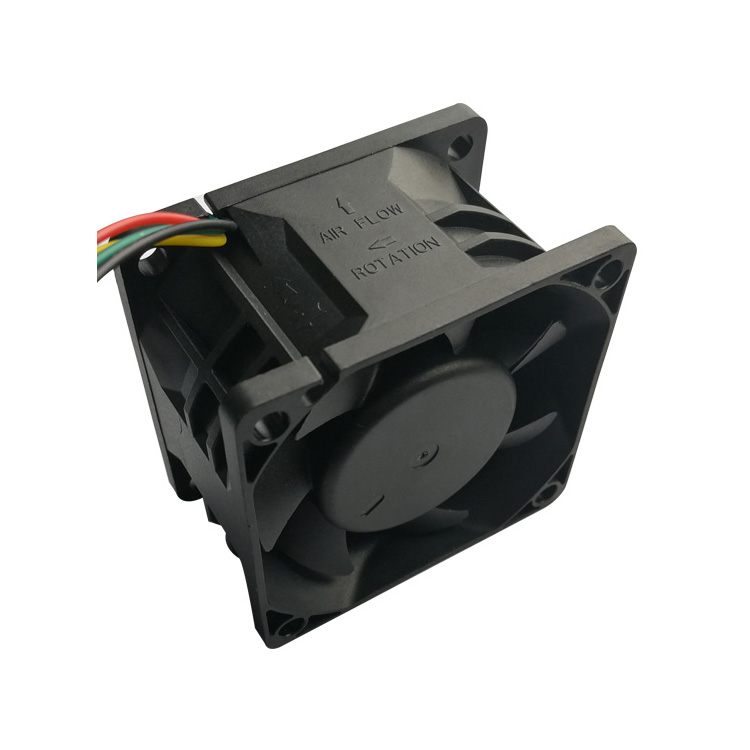

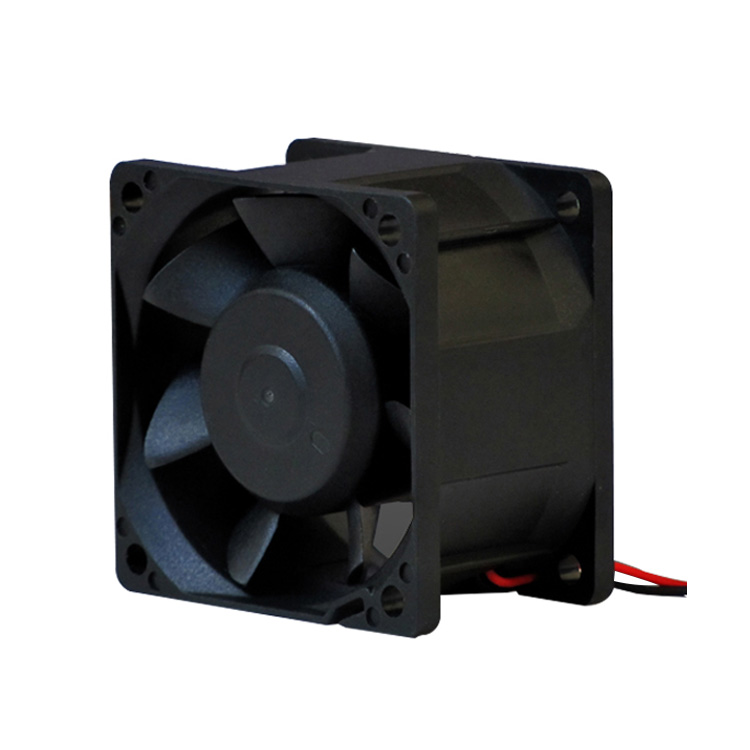

60x60x38mm 12V 24V 48VDC Cooling Fan
Product Attributes
l Size / Dimension: 60x60x38mm
l Voltage - Rated：12VDC / 24VDC / 48VDC
l Bearing Type: Sleeve / Dual Ball Bearing
l Air Flow: 0.843 ~ 1.463 m³/min（29.7 ~ 51.6 CFM）
l Static Pressure: 11.48 ~ 32.75 mm H2O（0.452 ~ 1.289 in H2O）
l Noise: ＜48.9 - 62.2 dB(A)
l RPM: 6000 ~ 10000 RPM
l Current Rating (Amps): 0.07 ~ 0.9A
l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)：3.12 ~ 10.8 W
l Weight: 110g
Certifications:
CE Listed
FCC Listed
REACH Compliant
| Model | Rated Voltage | Operating Voltage Range | Rated Current |
Rated
Input Power
|
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CLD6038L12X | 12 | 7~13.5 | 0.26 | 3.12 | 6000 | 0.843 | 29.7 | 11.48 | 0.452 | 48.9 |
| CLD6038M12X | 12 | 7~13.5 | 0.42 | 5.04 | 7000 | 1.103 | 35.7 | 16.19 | 0.637 | 52.3 |
| CLD6038H12X | 12 | 7~13.5 | 0.6 | 7.2 | 8000 | 1.172 | 41.4 | 21.07 | 0.830 | 56.1 |
| CLD6038LH12X | 12 | 7~13.5 | 0.72 | 8.64 | 9000 | 1.299 | 45.8 | 26.24 | 1.033 | 60.3 |
| CLD6038HH12X | 12 | 7~13.5 | 0.9 | 10.8 | 10000 | 1.463 | 51.6 | 32.75 | 1.289 | 62.2 |
| CLD6038L24X | 24 | 18~26.5 | 0.13 | 3.12 | 6000 | 0.843 | 29.7 | 11.48 | 0.452 | 48.9 |
| CLD6038M24X | 24 | 18~26.5 | 0.21 | 5.04 | 7000 | 1.103 | 35.7 | 16.19 | 0.637 | 52.3 |
| CLD6038H24X | 24 | 18~26.5 | 0.3 | 7.2 | 8000 | 1.172 | 41.4 | 21.07 | 0.830 | 56.1 |
| CLD6038LH24X | 24 | 18~26.5 | 0.36 | 8.64 | 9000 | 1.299 | 45.8 | 26.24 | 1.033 | 60.3 |
| CLD6038HH24X | 24 | 18~26.5 | 0.45 | 10.8 | 10000 | 1.463 | 51.6 | 32.75 | 1.289 | 62.2 |
| CLD6038L48X | 48 | 36~54 | 0.07 | 3.12 | 6000 | 0.843 | 29.7 | 11.48 | 0.452 | 48.9 |
| CLD6038M48X | 48 | 36~54 | 0.1 | 5.04 | 7000 | 1.103 | 35.7 | 16.19 | 0.637 | 52.3 |
| CLD6038H48X | 48 | 36~54 | 0.15 | 7.2 | 8000 | 1.172 | 41.4 | 21.07 | 0.830 | 56.1 |
| CLD6038LH48X | 48 | 36~54 | 0.18 | 8.64 | 9000 | 1.299 | 45.8 | 26.24 | 1.033 | 60.3 |
| CLD6038HH48X | 48 | 36~54 | 0.225 | 10.8 | 10000 | 1.463 | 51.6 | 32.75 | 1.289 | 62.2 |
